Subhawati Ventilation Systems

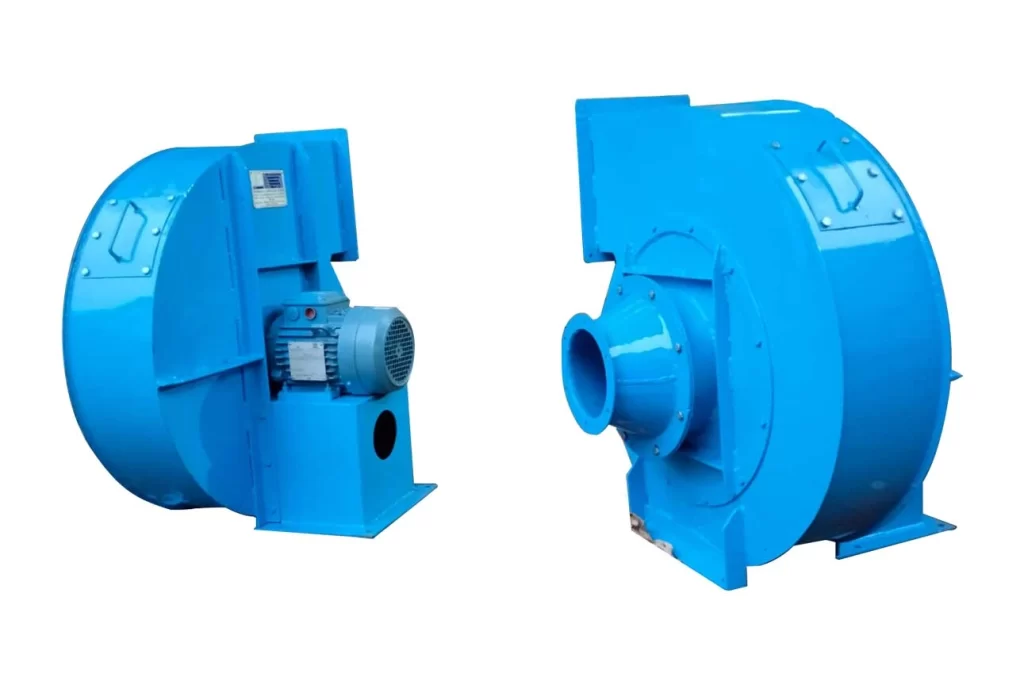

Low Pressure Centrifugal Fan/Blowers

Centrifugal Blowers are well engineered, high efficiency air moving blowers, incorporating all the latest improvements to suit any type of industrial application like Fume or Vapour exhaust, Dust Handling, Material Conveying, Induced Draft, Forced Draft and so forth in foundries, Power Plants, Engineering Industries, Cement and Chemical producing plants and the like.

Manufactured using advanced engineering techniques and premium-grade materials, our low pressure centrifugal fans ensure smooth operation, low noise levels, reduced vibration, and long service life. These fans are widely used in cooling towers, HVAC systems, air handling units, industrial ventilation systems, and process industries.

In single inlet single width design with backward curved, straight radial, straight or flat backward sloped bladed impeller for low, medium and high-pressure application:

Technical Specification

SpecificationDetails
Airflow Range500 to 5,00,000 m³/hr
Static Pressure30 to 350 mmWG
Rotor Diameter180 mm to 2400 mm
Operating Temperature-20°C to 450°C
Impeller TypeBackward Curved, Backward Inclined
Drive TypeDirect Drive / V-Belt Drive / Coupling Driven
Material of ConstructionCarbon Steel, Stainless Steel, PP + FRP, MS + FRP
ApplicationsGeneral Air Supply & Exhaust, Explosion Proof Air Supply & Smoke Removal
