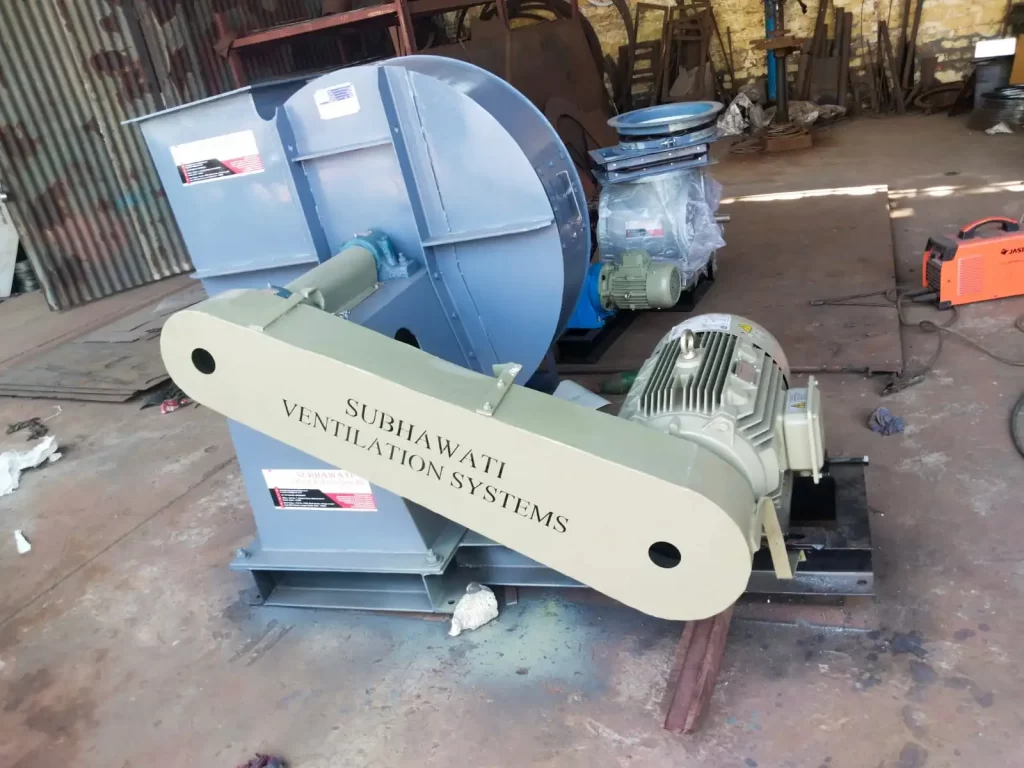

High Pressure Centrifugal Blower

we manufacturer and supply premium-quality High Pressure Fans designed to deliver powerful airflow and reliable performance in demanding industrial environments. Our fans are engineered using advanced technology and high-grade raw materials to ensure maximum efficiency, low maintenance, and long operational life.

These fans are widely used in industries where high static pressure and continuous air movement are required. Built for heavy-duty applications, our high pressure fans provide excellent performance for dust collection systems, pneumatic conveying, combustion air supply, industrial ventilation, and process air handling systems.

Our manufacturing company will provide these Medium Pressure fans for various applications such as- Steam Boiler, to identify the combustion process in a large boiler, Thermal Oil Heater, Bag filter, Dust Collectors, Cooling Towers and etc.

In single inlet single width design with backward curved, straight radial, straight or flat backward sloped bladed impeller for low, medium and high-pressure application:

Technical Specification

SpecificationDetails
Airflow Range500 to 2,20,000 m3/hr
Static Pressure100 to 1250 mmWG
Rotor Diameter200mm to 1600mm
Operating Temp.20 to 450 C
Impeller TypeBackward Curved, Backward Inclined
Drive TypeDirect/V-Belt/Coupling Driven
Material of ConstructionCarbon Steel, Stainless Steel, PP + FRP, MS + FRP
ApplicationIndustrial Boiler, Bag Filter, Dust Collector, Process Fan etc.
